Sinker EDM

AG40L

The most popular Linear Die sinker EDM range in the market, “AG series” ensures that machining in half the time has become an economically efficient reality.

The series features linear drive technology and simplified control mechanisms, which provide a direct link between the drive and the control. This ensures the fastest possible servo-response and optimal spark gaps at all times


Compare Sinker EDM Machines
Media

Sinker EDM Demo

Features

  • 10 year warranty on positioning accuracy
  • Linear Motor (X/Y/Z axis)
  • Absolute Linear scale (X/Y/Z axis)
  • Ceramic components
  • Linear motor cooling unit
  • Dielectric fluid cooling unit
  • SVC circuit
  • “SGF2” Nano-Wear Discharge Unit
  • TMM3 generator
  • Improved Ease of Operation
  • NC operation panel
  • Remote controller
  • LN Professional software for optimum condition search
  • 3-side Rise and fall work tank
  • Clamping chuck
  • LAN interface
  • USB port
  • Totalising hour metre
  • Work light

Options

  • C-axis SEC10 (20 rpm)
  • ATC Unit (4, 12, 16, 32-station)
  • SCF72P High-precision rotary head (2000 rpm)
  • 40A Booster
  • STP Circuit (for hard metal cutting)
  • Table Down 50 mm (Factory option)
  • Table Down 100 mm (Factory option)
  • Oscilloscope
  • Active Power Restart (UPS)
  • Intelligent Q³vic EDM
  • Automation system
  • 8-axis simultaneous control LN20 (Factory option)
  • Custom Colour

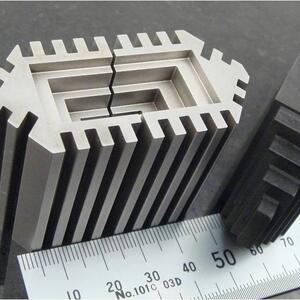

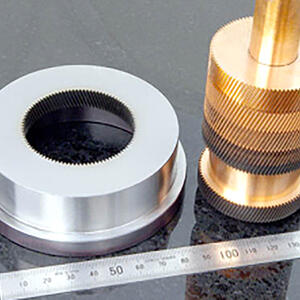

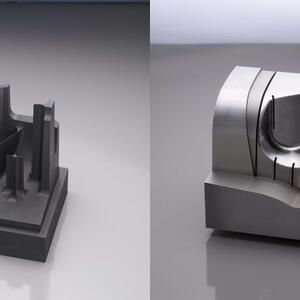

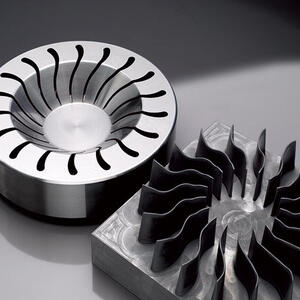

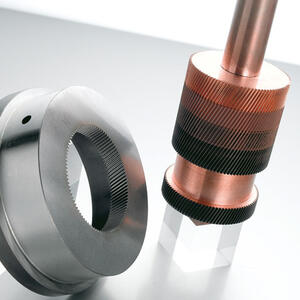

Sample

  • Material: Steel
  • Depth: .39" (10 mm)
  • Surface Roughness: 2.6 μm Rz
  • Machining Time: 17 hours 10 min
  • Electrode Material: Copper
  • Rotation: 20°

Product Descriptions

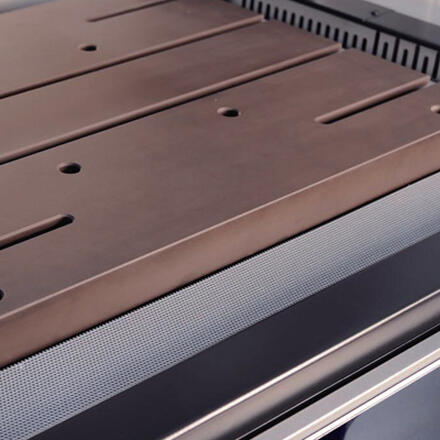

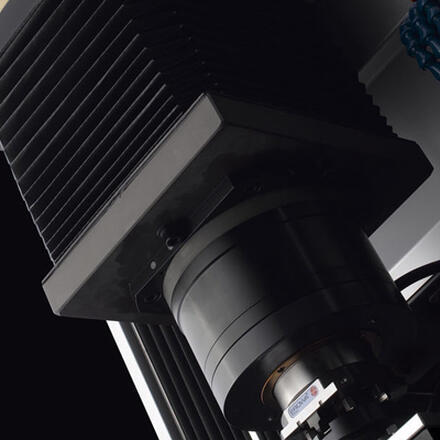

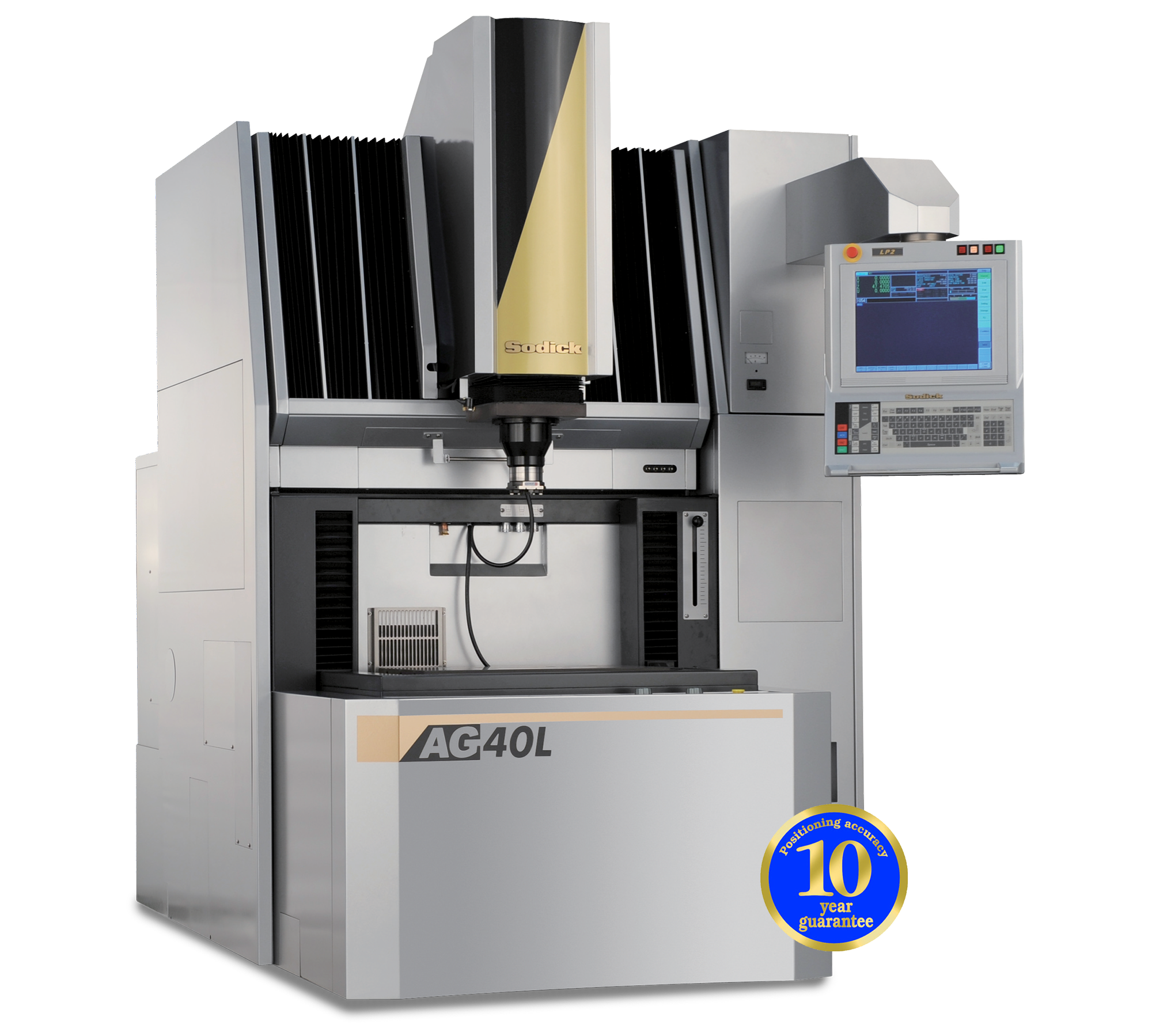

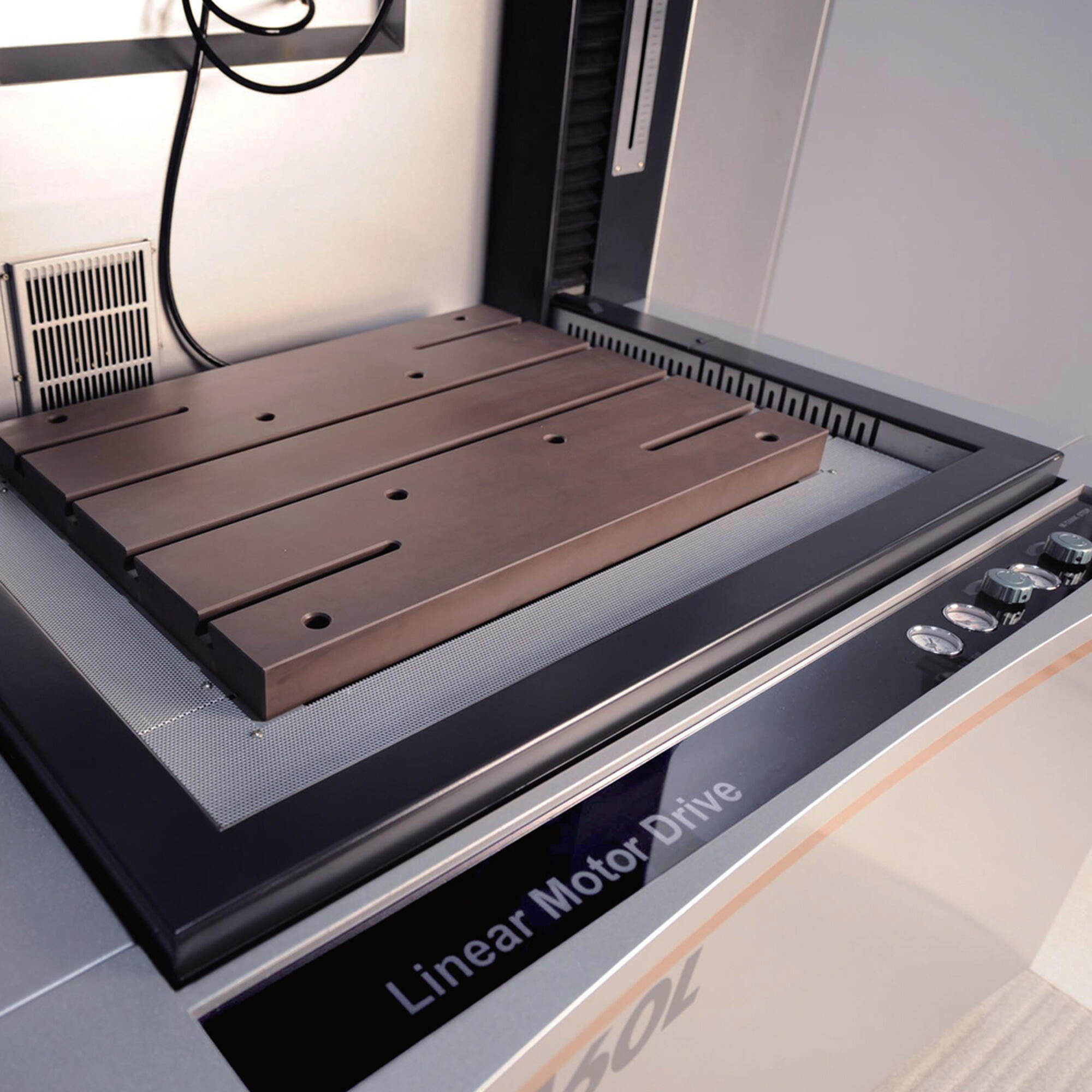

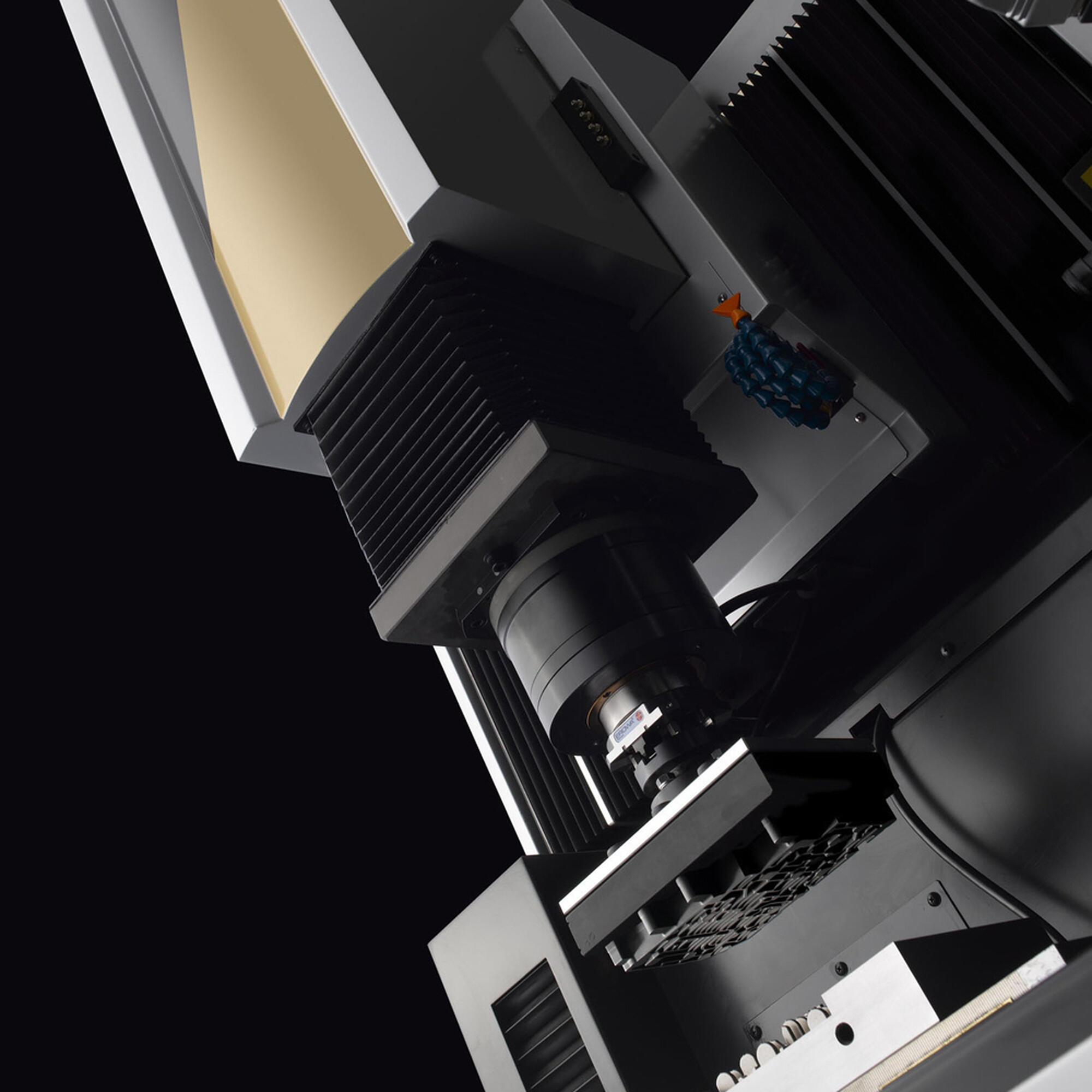

The AG40L Sinker EDM features Sodick’s Linear Motor Drives. Linear motor drives have been a perfect fit for CNC Sinker EDMs. The linear motor’s fast 1,400”/min axis feed combined with high 1.2G acceleration creates its own natural and even flushing condition. The positioning accuracy of Sodick’s linear motors are guaranteed for 10 years on all Wire and Sinker EDMs.

The New LN Series power supply unit incorporates all functions necessary for high-speed, high-precision and high-efficiency EDMing. It incorporates a CF card for data storage to enhance reliability and to save energy. The ease of operation has been further enhanced with the newly designed operation and control panel, which provides touch-screen operation and LAN function. The LN professional automatic programming system offers a wide variety of machining shape patterns that can be used in various kinds of machining. The LN2 features "perfect active control" technology, enabling simultaneous control of high speed electrical discharge and axis movements by using serial communication technology of 1Gbit/sec.

The AG Series features energy-saving designs and technologies. Compared to conventional EDMs, the Sodick Sinker EDM Range can reduce average energy consumption by up to 60%.

The AG Series EDMs feature the newly developed TMM3 electric discharge power supply unit. The TMM3 increases machining speed with cutting cemented carbide and other difficult to cut materials.

Specifications

X/Y/Z axis travel (mm):400 x 300 x 270
Table dimensions (W x D, mm):600 x 400
Work tank dimensions (W x D x H, mm):750 x 620 x 350
Work tank fluid level (Min. to Max., mm):100 ~ 300
Max. workpiece weight (kg):550
Max. Weight of electrode(kg):50
Distance from floor to table top (mm):830
Machine dimensions (W x D x H, mm):1662 x 2490 x 2330
Machine weight (kg):4100
Air pressure:0.65
Step resolution (mm):0.0001
Controlled axis:4
