Sinker EDM

AL60G

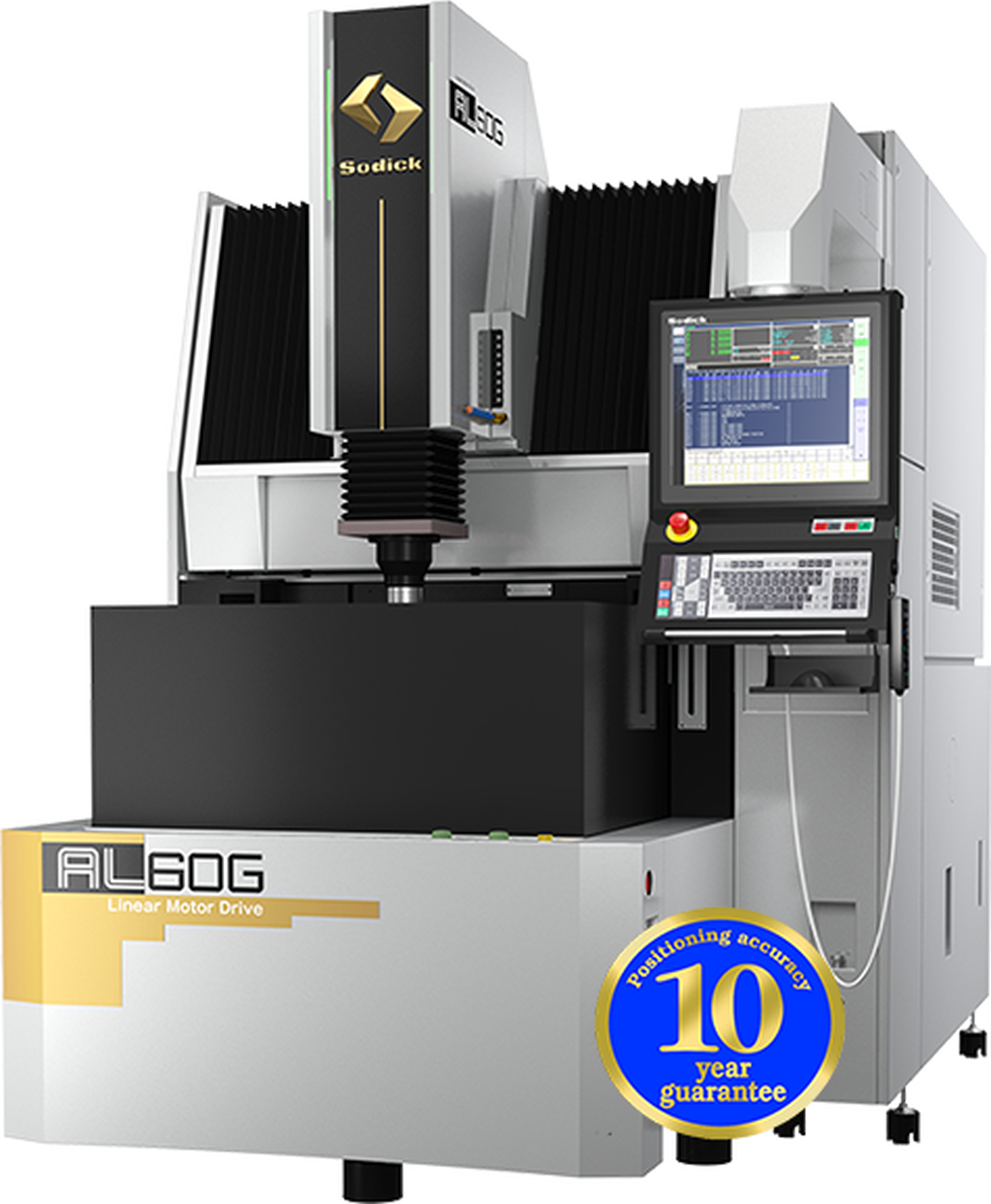

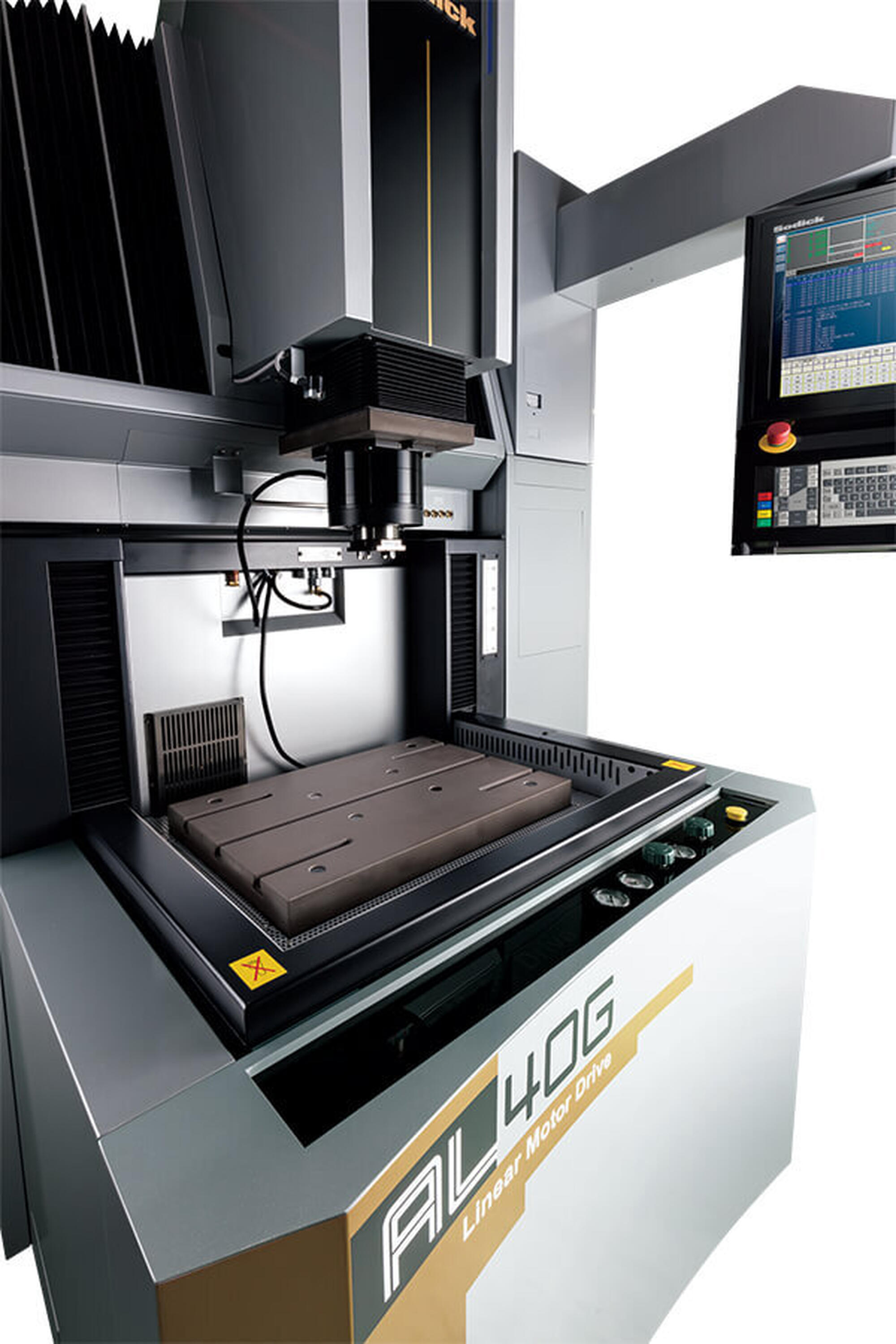

The Sodick AL60G is a high performance Rigid Linear Motor driven CNC Sinker EDM enhanced with the latest artificial intelligence (AI).


Compare Sinker EDM Machines

Features

  • Rigid Linear Motor (X, Y, Z axis)
  • 10-year positioning Guarantee
  • Ceramic Structures
  • Dielectric Cooling System

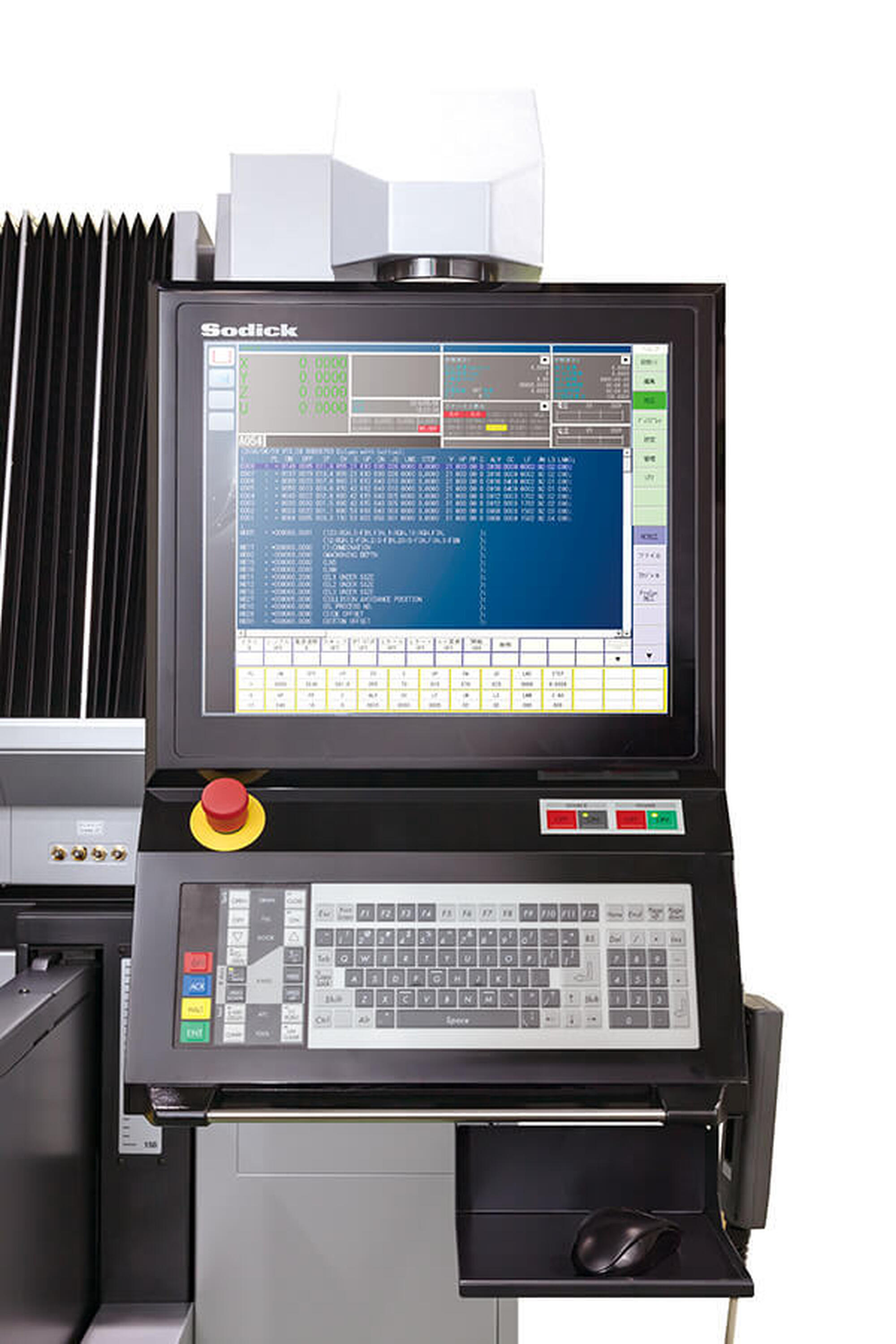

  • 19" Color Touch Screen
  • High Speed SP Power Supply

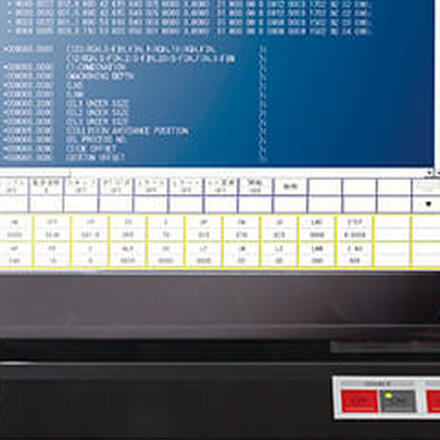

  • LN Professional AI Programming Software

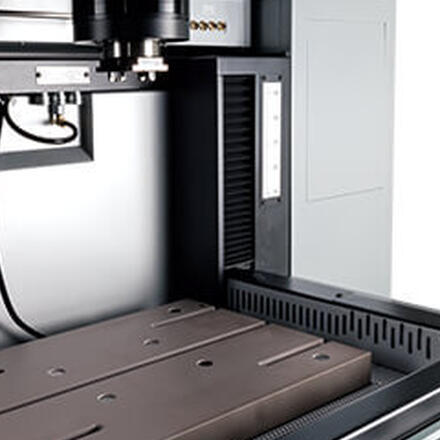

  • 3-Sided Drop Tank

Options

  • Programmable C Axis (SEC10)
  • Programmable C Axis (SCR72P) with up to 2,000 RPM
  • Automatic Electrode Changer with up to 32 positions
  • Table Down up to 4" (100mm) (Factory Option Only)
  • Automation Interface for Full Robot and Cell Ingration
  • 40 Amp Power Supply Booster (additional 80 Peak Amp)
  • Offline Programming with LN Professional AI
  • SP-E Controller for up to 8 Programmable Axis

Sample

Capacity (l): 465

Filtration method: 2 replaceable paper filters (MF-2400

Dielectric fluid: Oil


Product Descriptions

The AL60G is equipped with in-house developed and manufactured Rigid Linear Motor Drives that allow high-speed and high response machining. Axis acceleration up to 1G enables stable machining even in the most difficult "no flush" cutting conditions.

The communication and processing speed has been improved further in the newly developed "SP Power Supply" , increasing motor response speed by almost double. The adaptation of the new "TMM4" and "BSN4" circuits improves the quality and speed across the entire discharge machining range.

The adoption of the latest electrical discharge control technology "Arc-less 4" circuit greatly improves the performance of the AL60G in terms of electrode wear, speed and surface finish.

New discharge control circuits TMM4, TPC4 and BSN4 are provided standard on the AL40G ensuring machining quality and speed are improved across all EDM processes. Short pulse high peak current ensures speed improvement throughout finishing cycles even in narrow gap applications.

Specifications

X - Axis Travel23.62" (600 mm)
Y - Axis Travel16.54" (420 mm)
Z - Axis Travel14.57" (370 mm)
Table dimensions (W x D,):29.53" x 21.65" (750 x 550 mm)
Work tank dimensions (W x D x H, ):37.40" x 29.13" x 17.72" (950 x 740 x 450 mm)
Max. workpiece weight (kg):3306.93 lb. (1,500 kg.)
Max. Weight of electrode(kg):50 lb. (110.23 kg.)
Machine dimensions (W x D x H,):73.82" x 115.35" x 101.18" (1,875 x 2,930 x 2,570 mm)
Machine installation dimensions:102.36" x 151.57" (2,600 x 3,850 mm)
Machine weight (kg):11,794.73 lb. (5,350 kg.)
