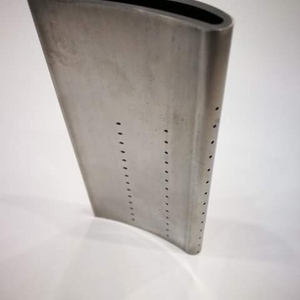

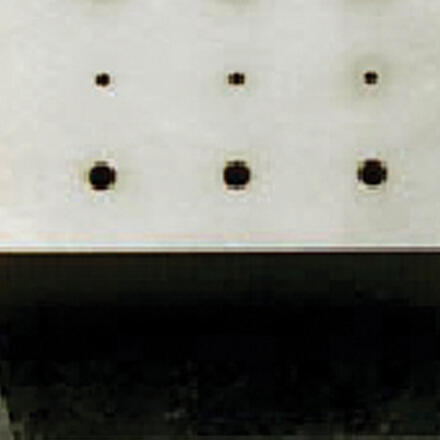

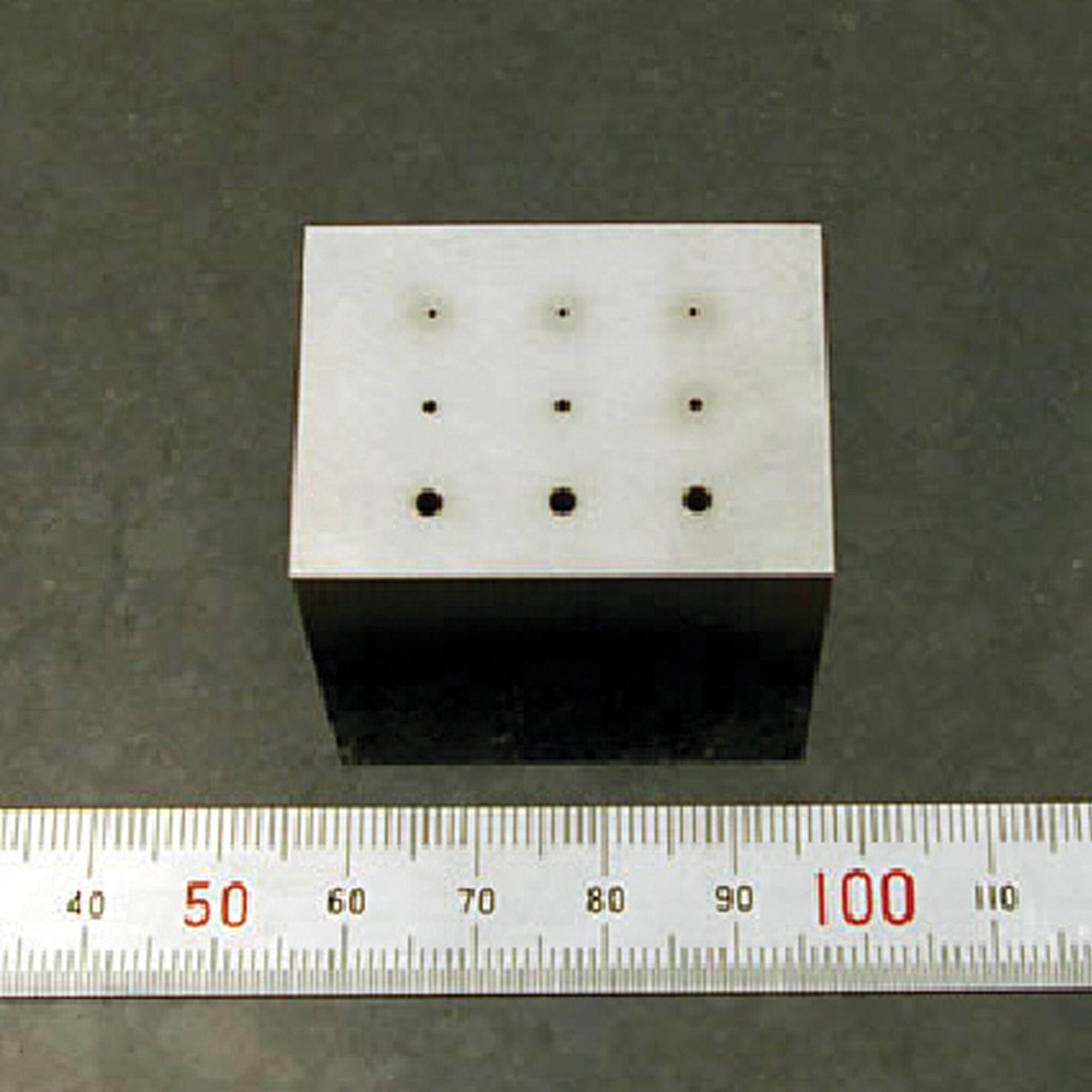

The K6HL is a multiaxis-capable small hole drill EDM machine that specializes in making quick work of shaped diffuser holes for aerospace applications. The K6HL is often used as a production machine to EDM blades and vanes, with patented electrode feeder capabilities not available with any other brand.
Since the K6HL hole popper is equipped with K-SMC, Sodick Motion Controller, the optimized servo control is activated and improves cutting speed by up to 200%.
Accurate fine feeding is controlled for stable machining.
The K Series features energy-saving designs and technologies. Compared to conventional Hole Drillers, the K6HL can reduce average energy consumption by up to 60%.
An automatic programming system, LN Assist, is standard on the K6HL. Its simplified graphics screen allows for easy operation. As LN assist is also capable of a series of calculations and macro functions, operators can easily work with any kind of complex cutting layouts and programs not dependent on their skills. A customized function is available where operators can register their own programs as a utility.

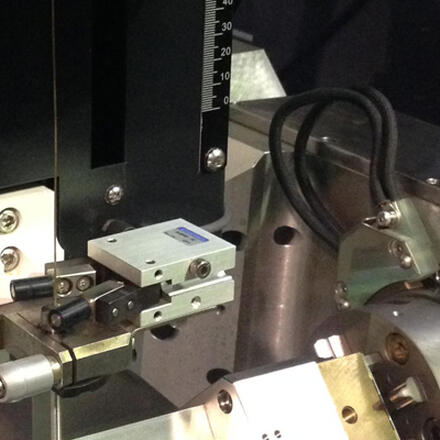

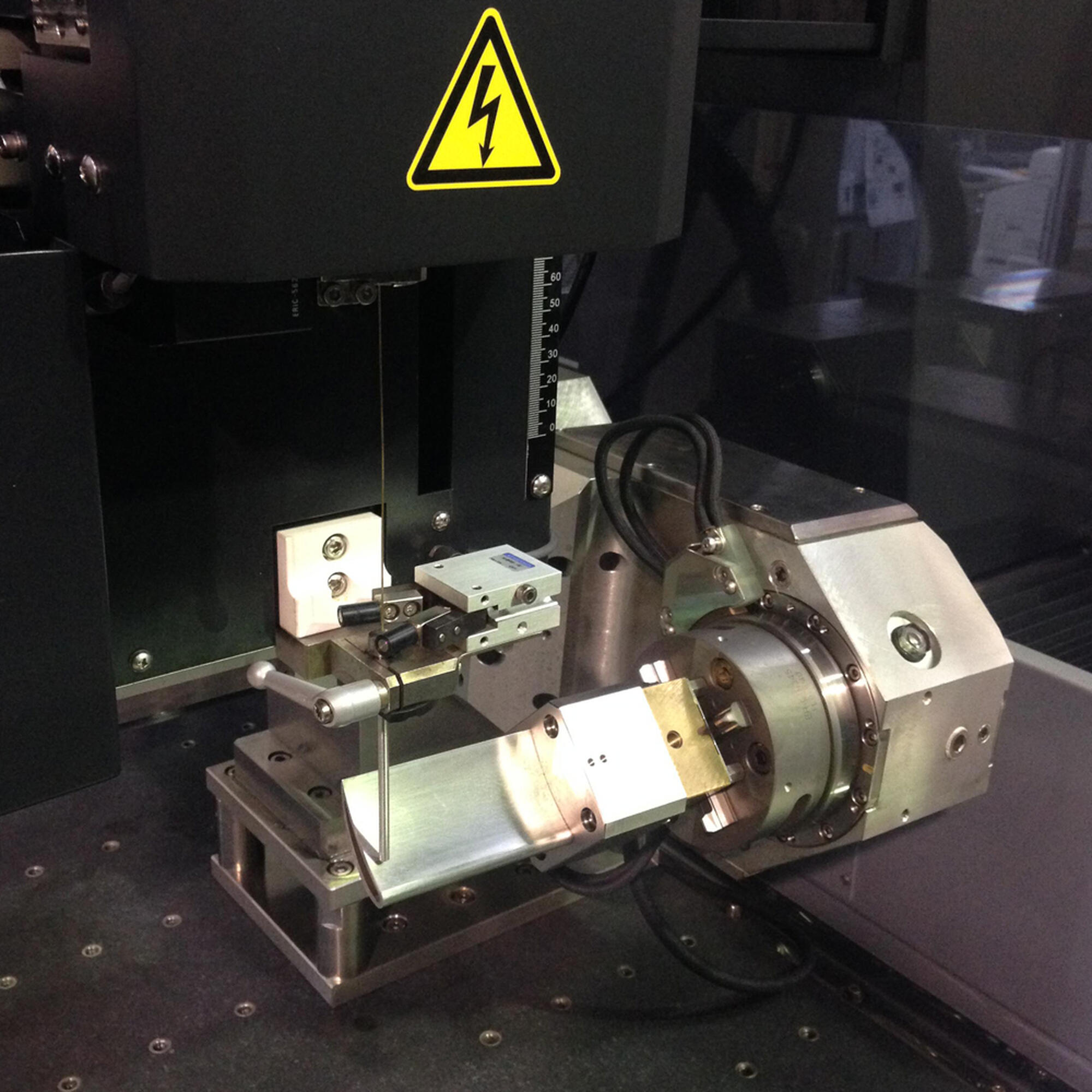

AEF (Automatic Electrode Feeder) comes standard on the K6HL. It enables continuous cutting with several electrodes.
| X - Axis Travel | 23.62” (600 mm) |
| Y - Axis Travel | 23.62” (600 mm) |
| Z - Axis Travel | 19.69” (500 mm) |
| W - Axis Travel | 15.75” (400 mm) |
| X-Y-Z Axis Drive | Rigid Linear Motor |
| Electrode Diameter | Φ.004” ~ .12” (Φ.1~ 3 mm) |
| Work Table Size | 29.53” x 29.53” (750 x 750 mm) |
| Distance From Guide to Table | 2.17” ~ 17.91” (55 ~ 455 mm) |
| Machine Dimensions | 62.09” x 84.25” x 96.06” (1,577 x 2,140 x 2,440 mm) |
| Maximum Workpiece Weight | 1,102 lbs (500 kg) |
| Machine Weight | 6,614 lbs (3,000 kg) |
